SPECTRE
The tactical electric trial bike by ETENDARD
SPECTRE
THE TACTICAL ELECTRIC TRIAL BIKE by ETENDARD
SPECTRE is a tactical electric trial bike.
Stealth, light and easily deployable, it is especially designed for armed forces and civil security applications.
With its two-wheels drive and dedicated architecture, it is designed for all terrain types, and all mission types….
SPECTRE TECHNICAL CHARACTERISTICS
PROPULSION
- Energy………………………………… 100% electric
- Voltage………………………………. 72V
- Power…………………………………. 8 kW continuous
- Transmission……………………. Two wheels drive
- Front engine…………………….. Direct drive 2 Kw continuous
- Rear engine………………………. Direct drive 6 kw continuous
- Cooling……………………………….. Dielectric fluid
BATTERY
- Technology………………………. NMC
- Voltage………………………………. 72V
- Capacity……………………………. 2160 Wh
- Set up………………………………… Extractable (easy installation and removal)
- BMS……………………………………. CANBus smart 20S
- Charging………………………….. On vehicle or charging rack
ELECTRONIC
- Controller……………………….. Twin independent front and rear system
- Modes……………………………… 3 torque modes + 3 speed modes
- Connection……………………. Wire only (no radio waves)
- Dashboard……………………… Colors LCD screen with all information
- Sealing…………………………….. IP67 equivalent (temporary immersion)
CHASSIS
- Type………………………………….. Welded tubular frame (high strength aluminium)
- Packing…………………………… Foldable rear swingarm
- Protections…………………….. Underbody ski
SUSPENSIONS
- Front type………………………… Hydropneumatic fork
- Front travel……………………… 150 mm at wheel
- Rear type…………………………. Hydromechanical monoshock swingarm
- Rear travel……………………….. 150 mm at wheel
BRAKES
- Front caliper…………………… 4 pistons
- Front disc………………………… Ø220 mm floating
- Rear caliper…………………….. 4 pistons
- Rear disc………………………….. Ø220mm floating
- eBrakes……………………………. Modulable front and rear electromagnetic brakes
STEERING
- Amplitude………………………. 80° right / 80° left
- Stem…………………………………. Disengageable for flat vehicle packaging
- Handlebar………………………. Height and depth adjustment
WHEELS
- Size……………………………………. 19‘’
- Filling……………………………….. Anti-puncture foam anti flat system
- Protections…………………….. Front and rear fenders
EASILY
DEPLOYABLE
SPECTRE GENERAL CHARACTERISTICS
DIMENSIONS
- Overall length……………….. 1950 cm
- Overall width…………………. 34 cm (flat packing)
- Overall height……………….. 117 cm
- Wheelbase……………………… 132 cm
- Ground clearance………… 25 cm
- Weight…………………………….. 63 kg
PERFORMANCES
- Dimensioning………………. For 160 kg equipped operator
- Speed………………………………. 50 km/h maximum
- Slope………………………………… 100 % maximum
- Ford………………………………….. Full submersion
- Obstacle…………………………. 40 cm maximum
- Autonomy………………………. 45 km off road driving
- Sound signature………….. Stealthy : e-motor without chain and gear
- Thermal signature………. 65°C maxi (engine + battery)
- Recharging time………….. 1H30
OPTIONS
- Color……………………………….. RAL of choice (matt black as standard)
- Covering………………………… Pattern of choice
- Tires………………………………… Trial / Dual / Cross of choice

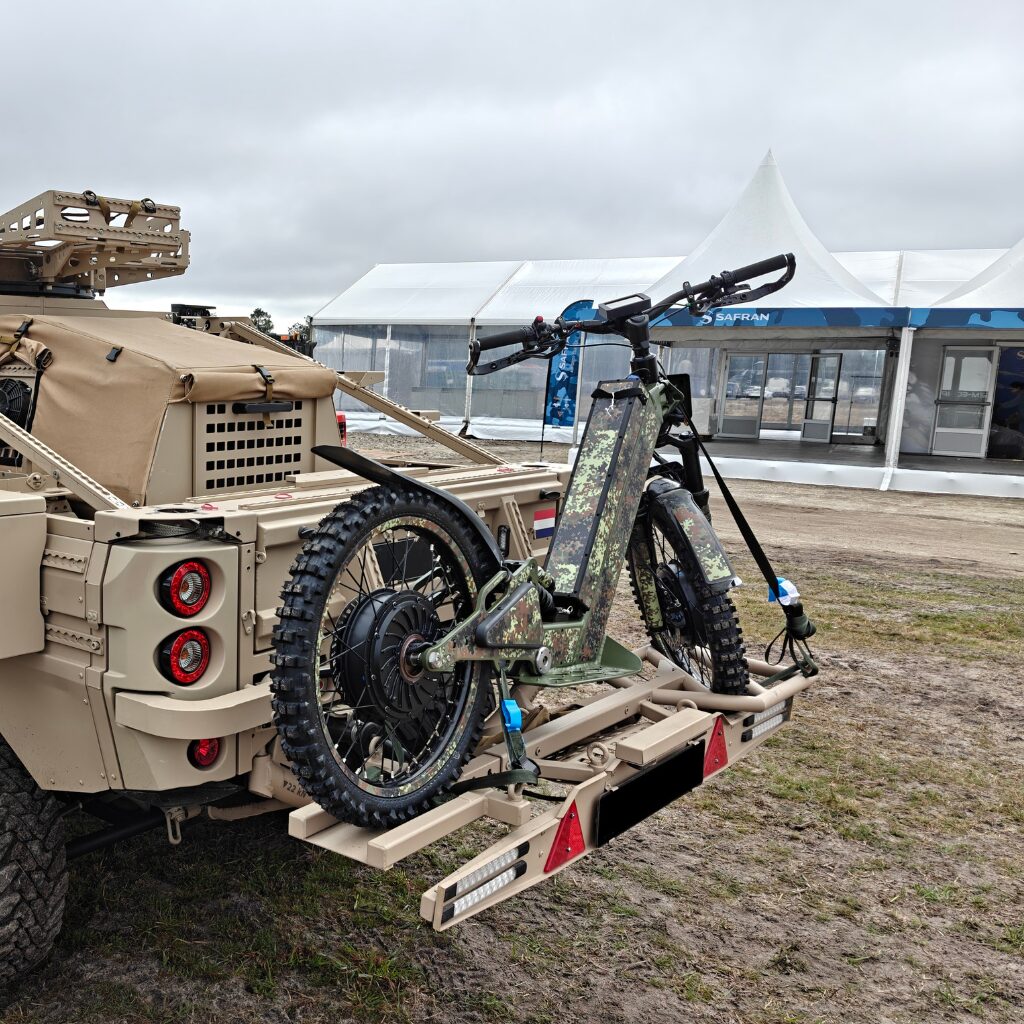

- Transportation…………….. Rack for vehicles on request (example : MV850)
- Long range…………………… Extra battery tray on request
SPARE PARTS
Available on request.
TRAINING
ETENDARD provides training sessions for users and technicians.
CUSTOMIZATION
ETENDARD remains attentive to their client’s needs to provide them the best suitable vehicle.
Do not hesitate to contact us for more information.
CIVIL SECURITY VERSION
also available
CIVIL SECURITY VERSION
also available

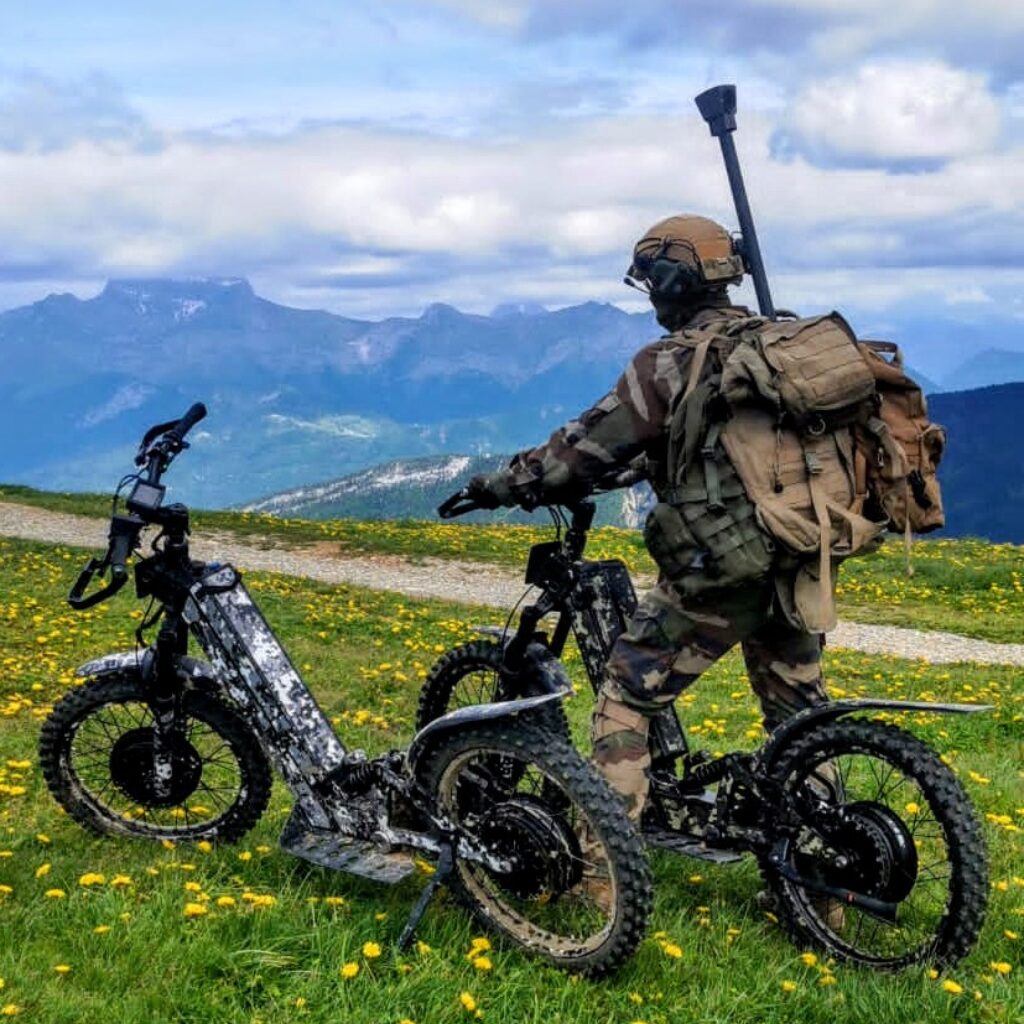

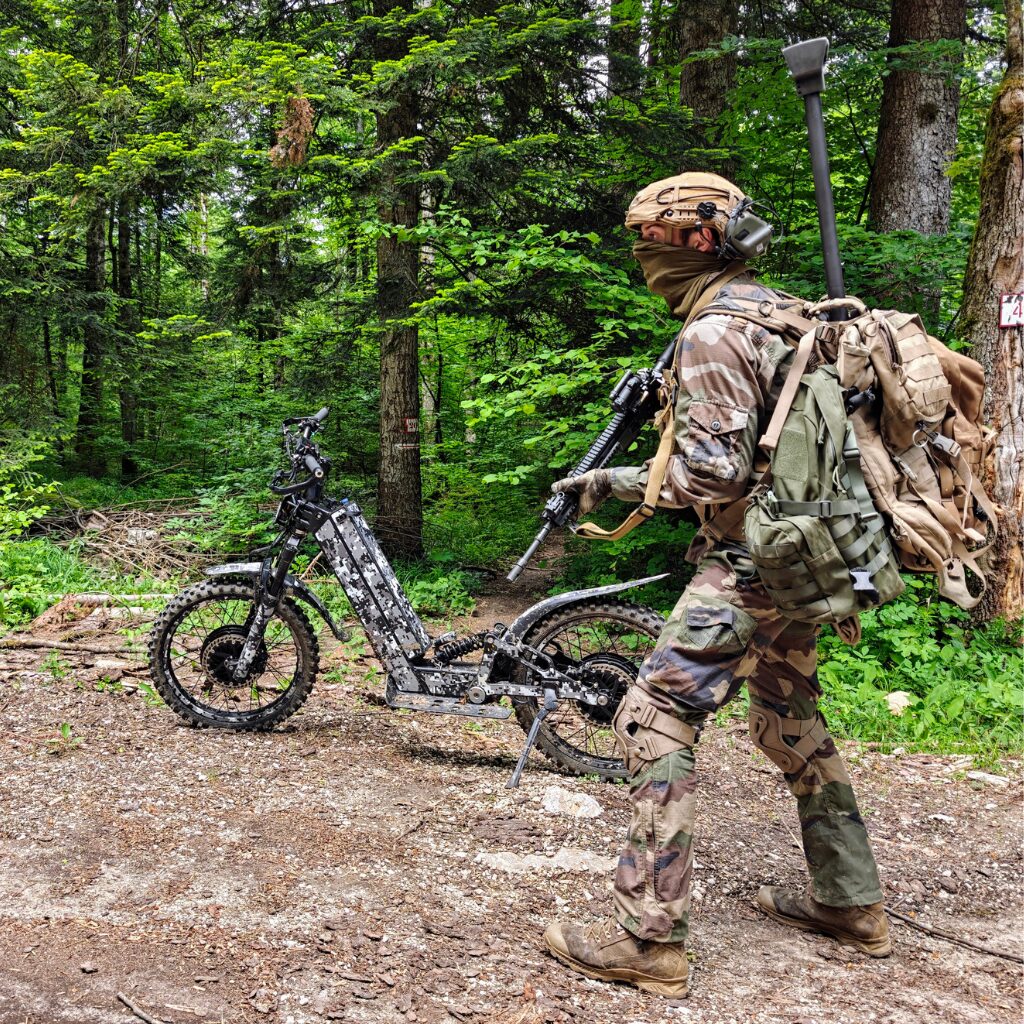

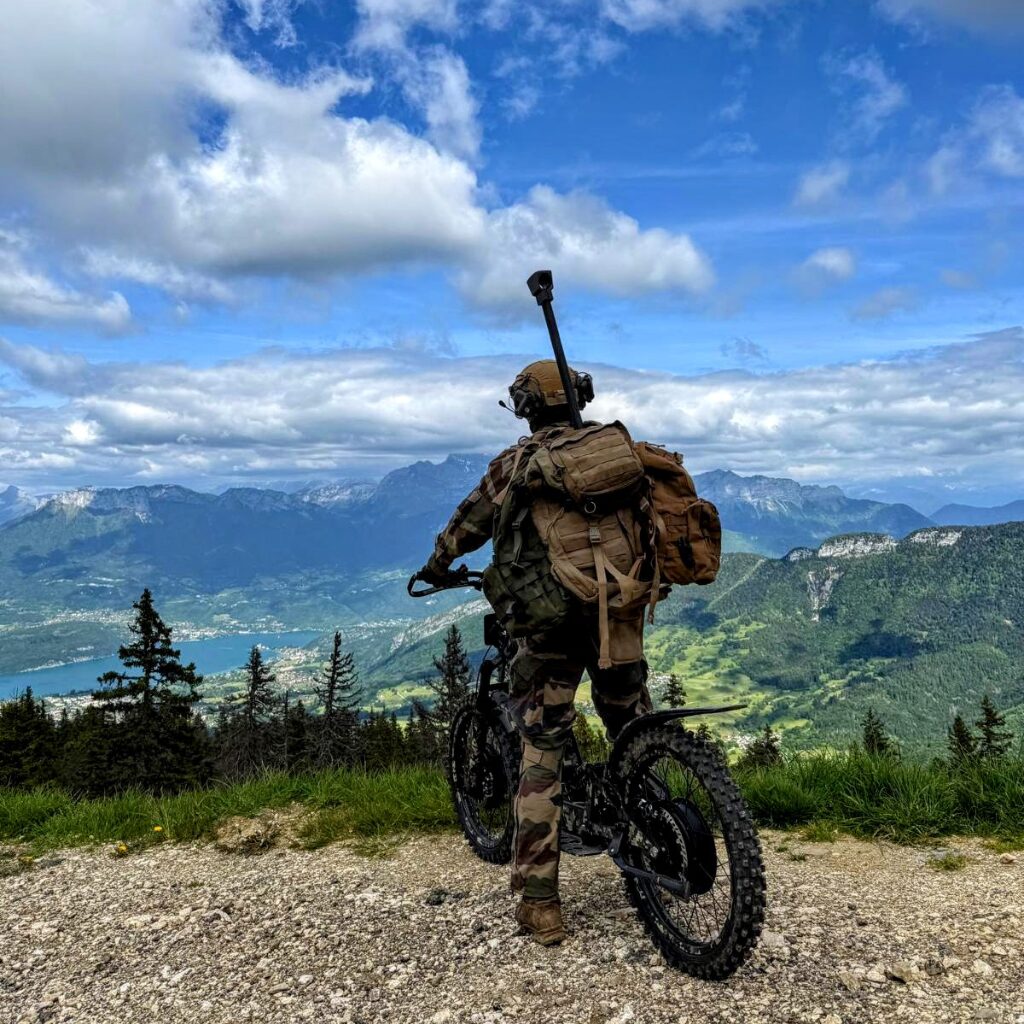

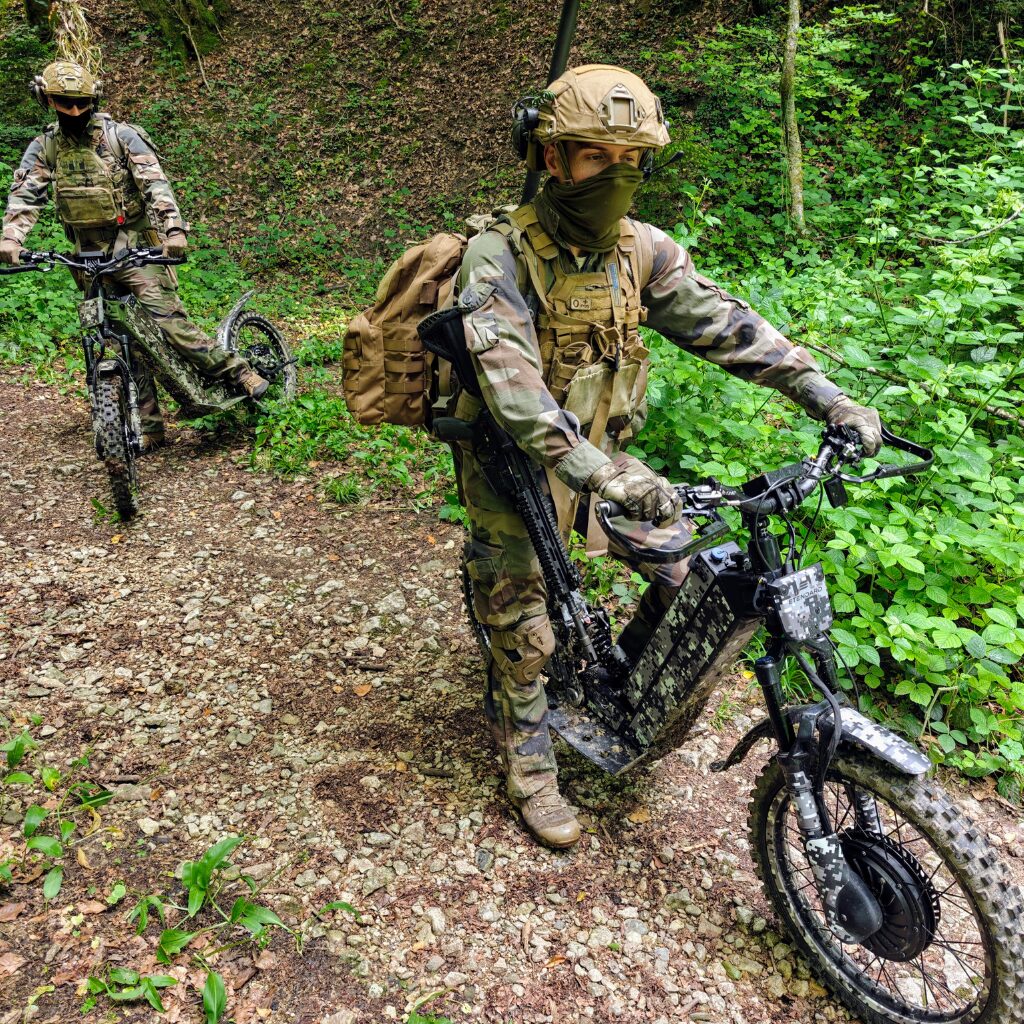

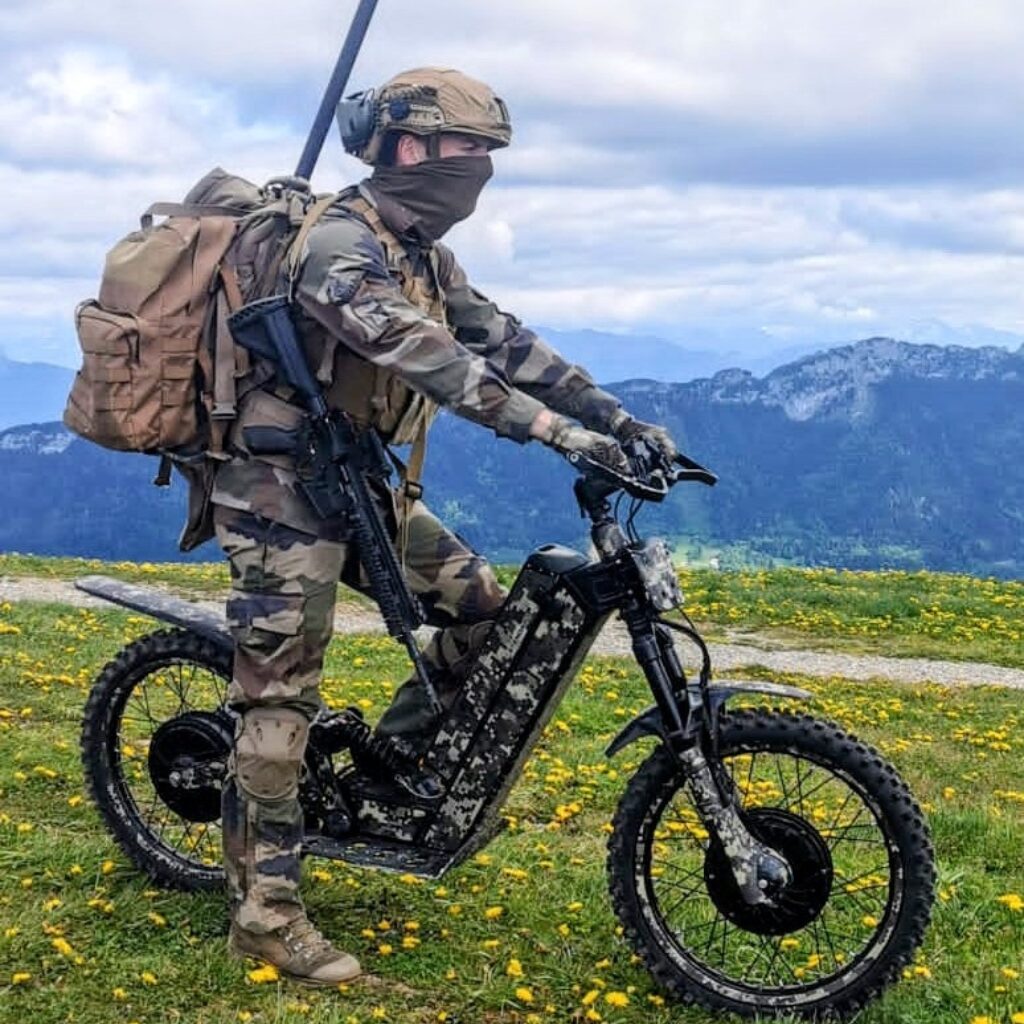

GALLERY
